PRODUKT HIGHLIGHTS

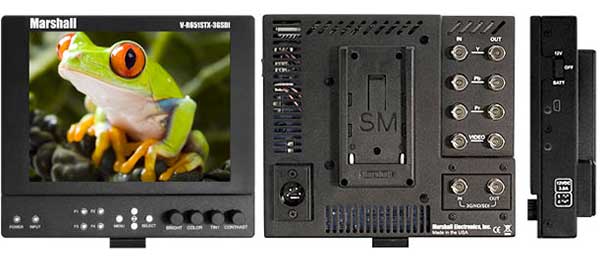

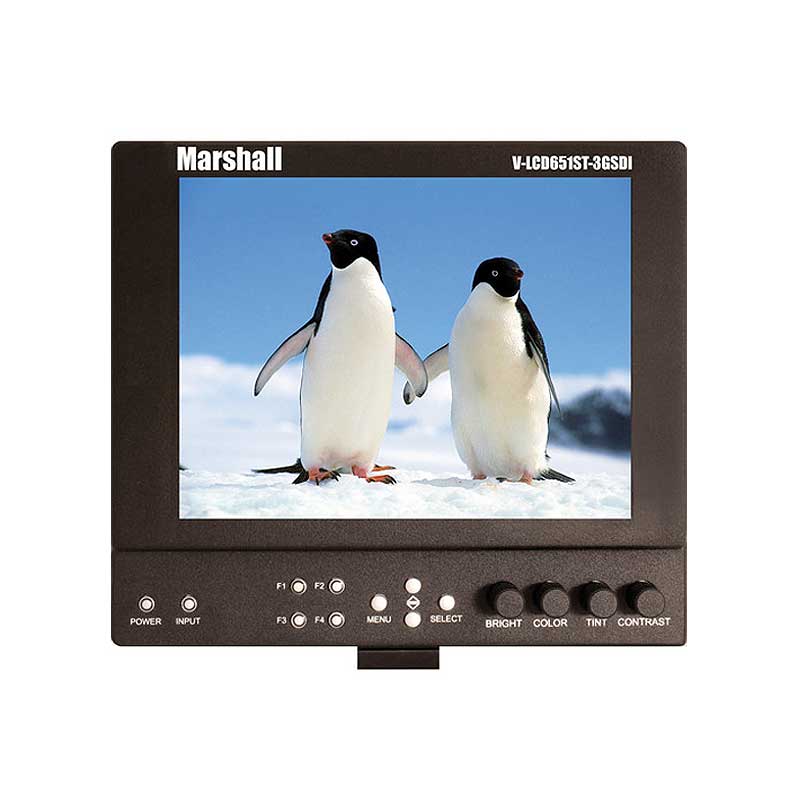

Marshall V-LCD651ST-3GSDI
6.5″ Lightweight High Resolution Super Transflective Portable Field / Camera-Top Monitor
The Marshall V-LCD651ST-3GSDI is the newest addition to Marshall’s line of Super Transflective Outdoor Monitors. This 6.5″ portable field / camera-top monitor is designed specifically for outdoor applications with high ambient light. Our technology minimizes surface reflection of both outdoor and indoor light, while featuring a much wider color reproduction range than typical transflective/reflective LCDs or even those with increased backlight performance. Marshall’s outdoor super-transmissive LCDs provide improved visibility by producing high-contrast images and a wider viewing angle, even under diverse and challenging lighting environments. This innovative technology dramatically boosts the efficiency of the LCD backlight’s light utilization, while maintaining extended temperature ratings and low power consumption for outdoor operation.

The Marshall V-LCD651ST-3GSDI introduces a new durable and lightweight design, weighing in at only 1.3 pounds. It also features our completely digital TFT-MegaPixel high resolution LCD screen with 2.4 million pixels, 4-pin XLR power jack, and optical-grade polycarbonate screen protection. Analog signals are digitized using advanced 10-bit processing with 4x oversampling and adaptive 5-line comb filter. This model comes in 2 other major module configurations: HDA (Composite, YPbPr) and HDMI (Composite, YPbPr and HDMI). A variety of battery adapters are available for each configuration.*

Technische Daten
Application |
Field Monitor |
|
LCD Size |
6.5″ |
|
Video System |
NTSC, PAL |
|
Picture Elements |
1024 x 768, 18-Bit Color |
|
Input and Output Connectors |
Composite Video: BNC (x1 Input, x1 Output)
Component Video: BNC (x1 Input, x1 Output)
HD/SD-SDI: BNC (x1 Input, x1 Output) |
|
Picture Controls |
Brightness, Color, Tint, Contrast, Menu, F1-F4 |
|
Remote Control |
No |
|
Power Requirements |
Battery 12VDC
Power Supply (XLR)
100-240VAC, 50/60Hz |
|
Power Consumption |
15W |
|
Dimensions (WxHxD) |
6.8 x 6 x 1.9″ (17.3 x 15.2 x 4.8cm) |
|
Weight |
1.3 lbs (0.6kg) |
|
*V-Mount („VM“) and Anton/Bauer („AB“) battery configurations require factory installation and are NOT user-replaceable.
